Soshine 3.7V Rechargeable Li-ion 18650 3400mAh Protected Battery with button top
Specifications:
| Type | Rechargeable Lithium-ion |
| Model | 18650P-3400 |
| Dimension | D18.6,H68.3,d7.5 |
| C5mAh | 2350 |
| C5mA | 2350 |
| Nominal Voltage | 3.7V |
| Capacity | Nominal 3350mAh Minimum 3200mAh when discharged at 0.2C5mA to 2.65V |
| Charging Conditions | 0.2C5mA charge termination control parameters taper current 0.01C5mA at4.2V |
| Service Life | 300cycles(≥60% C5mAh,0.2C discharge) |
| Weight | < 48g |
| Charging Voltage | 4.2±0.03V |
| Protection Circuit Module | Over Voltage Limit: 4.275 +/- 0.04 V Under Voltage Limit: 2.65 +/- 0.08 V Over Current Protection: 7 A~ 8A Max. Quiescent Drain: 7 µA |
| Cell protected | PTC (Positive temperature coefficient device) protect against over temperature and indirectly over current and will automatic reset CID (Current interrupt device) pressure valve, will disable the cell permanently if the pressure is to high in the cell (Can be due to over charge). |
| Ambient Temperature Range | Charging : 0～+45℃ Discharging :-20～+60℃ Storage :-20～+50℃ |
System: Cylindrical Li-ion Battery
Specification:18650
NominalVoltage: 3.7V
Capacity:3400mAh
Dimension:
Diameter-D-18.6max
Height-H-68.3max
Diameter-d-7.5
Weight approx: 129g (2pcs)
Quality Lithium Ion rechargeable cell
InBuilt Safety Circuitry
Maximumcapacity and reliability
Positivenipple
PCB Protected against:
Over charge(4. 275±0.04V)
Overdischarge(2.65±0.08V)
Overcurrent (short circuit)(7-8A)
Primary technical parameters
1. Discharge RateCharacteristics
2. Discharge Temperature Characteristics
3. Charge Characteristics
Product Advantages:
1) Green product
2) Long standby time
3) 6 months warranty
4) Excellent safety performance
5) Excellent storage performance and low self-discharge rate
6) Short circuit testing passed
7) Overcharge testing passed
8) Over discharge testing passed
Applications:
Features:
-
High Capacity and Stable Discharge Voltage
-
Light weight, small size and high performance
-
Small internal resistance
-
Outstanding Discharge properties and Storage Capacity
-
Pollution free, long cycle life
-
No memory effect
-
Existing stock for short delivery time.
-
Factory price, high quality
Cautions:
1. When using the application equipped with the battery, refer to the user’s manual before usage.
2. Please read the specific charger manual before charging.
3. Charge time should not be longer than specified inthe manual.
4. When the cell is not charged after long exposure to the charger, discontinue charging.
5. Battery must be charged at operating temperature range 0 ~ 45°C.
6. Battery must be discharged at operating temperature range -20 ~ 60°C.
7. Please check the positive(+) and negative(-) direction before packing.
8. When a lead plate or wire is connected to the cellfor packing, check out insulation not to short-circuit.
9. Battery must be stored separately.
10.Battery must be stored in a dry area with low temperature for long-term storage.
11.Do not place the battery in direct sunlight or heat.
12.Do not use the battery in high static energy environment where the protection device can be damaged.
13.When rust or smell is detected on first use, please return the product to the seller immediately.
14.The battery must be away from children or pets
15.When cell life span shortens after long usage, please exchange to new cells.
Quality Guarantee:
Power-Wholesale Website is committed to providing you with authentic 18650 lithium-ion batteries. Every battery sold was tested strcitly and of the highest quality.
Price:
-
We totally understand the price is crucial to a wholesaler, so we will do our best to maximize your profits.
-
We won’t ensure you our price is lowest but we ensure you what you paid is the price for authentic rechargeable Li-ion batteries.

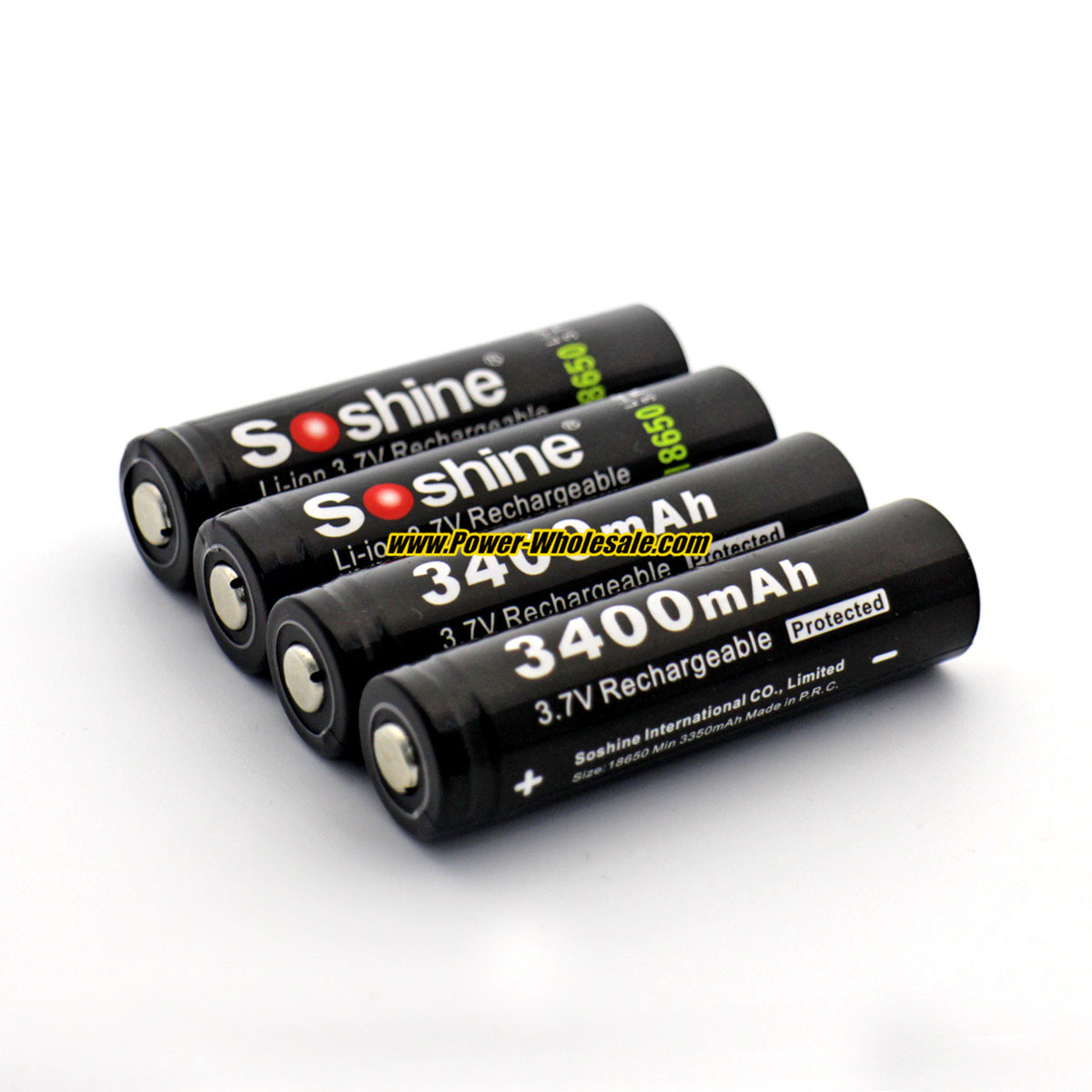

Detail Photos:

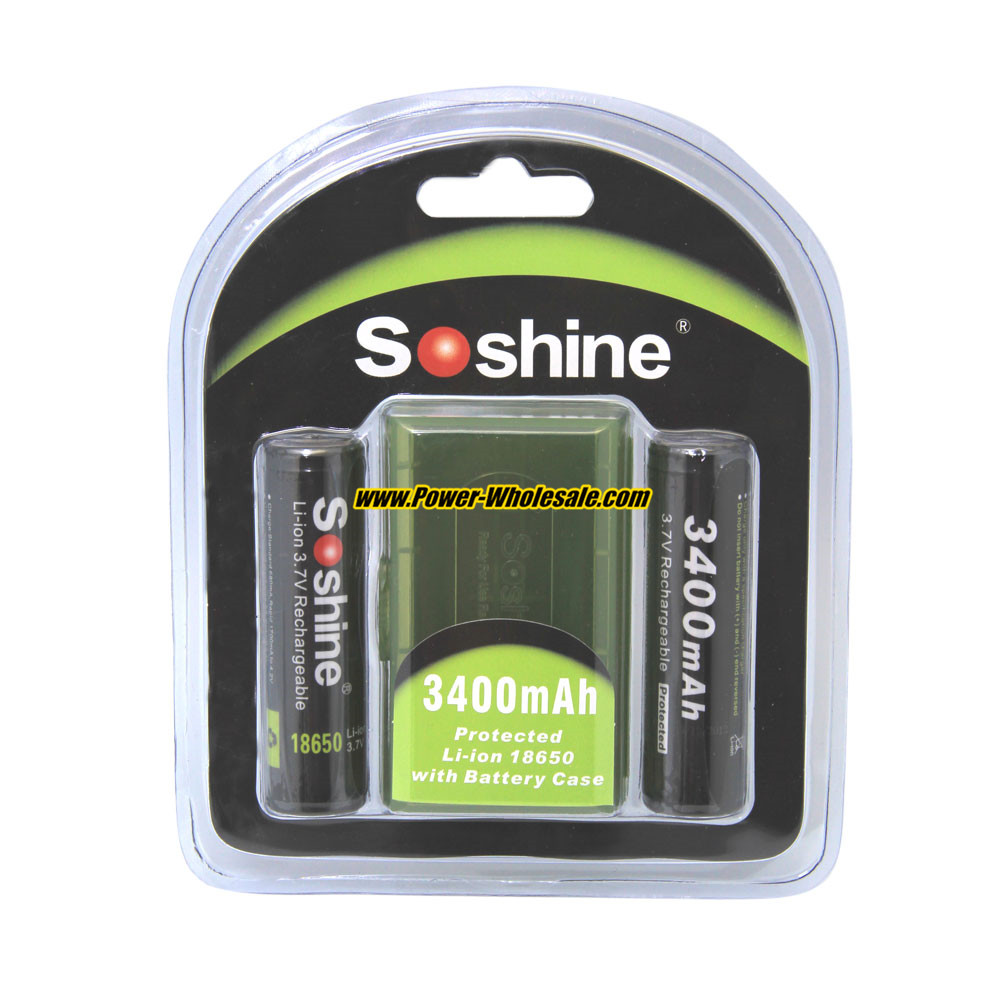

Blister Retail Package:
To know more about Soshine 3.7V 18650 3400mAh rechargeable battery, please check the official Data Sheet with us by following way:
Skype: power4world
Email: sales@eleteks.com
|
|

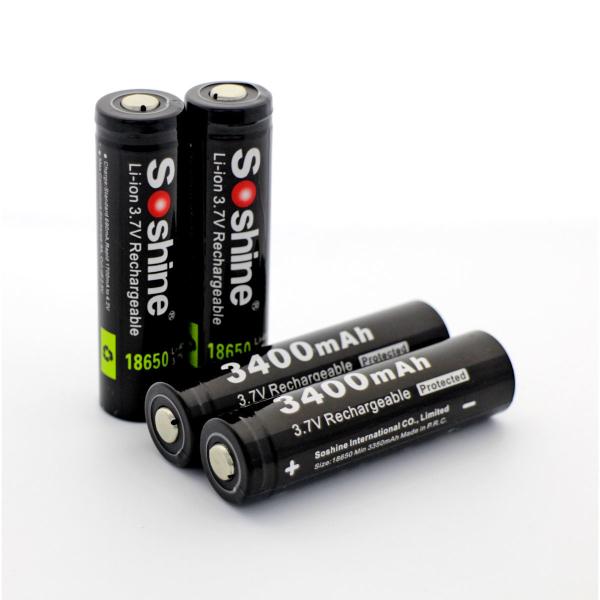

Soshine 3.7V Li-ion 18650 Protected Battery: 3400mAh with button top Images
|
